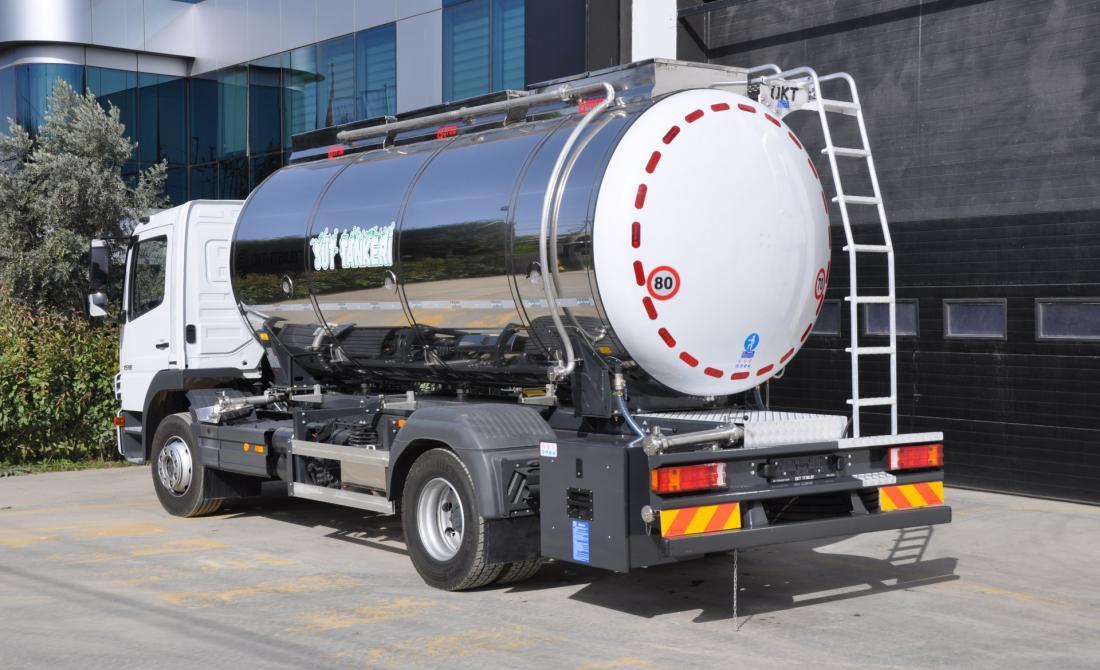

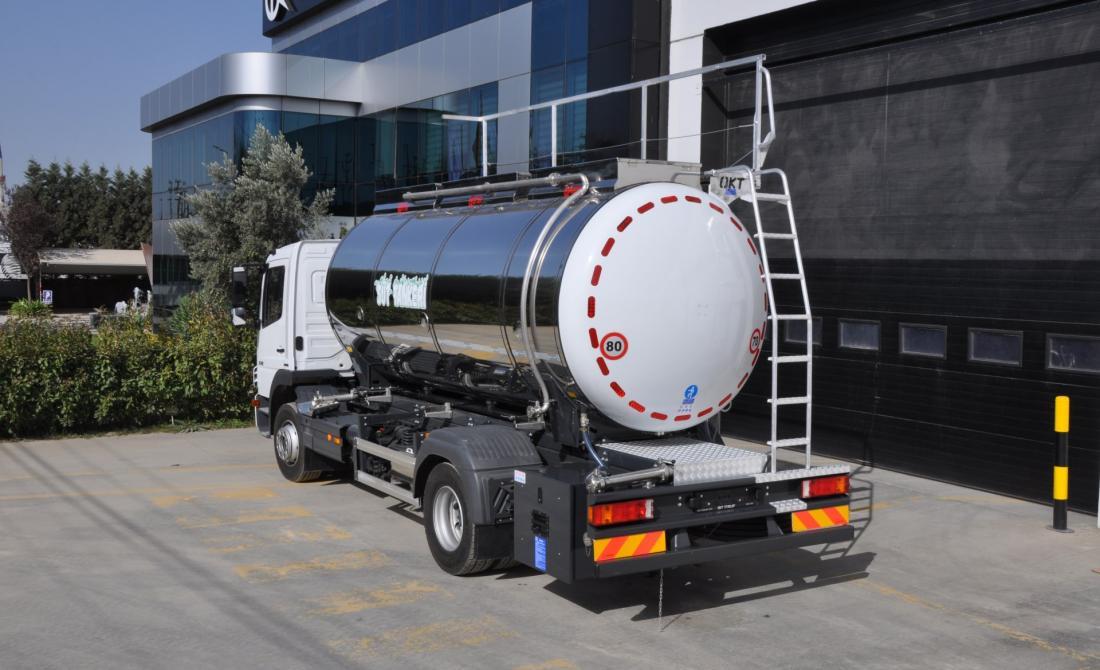

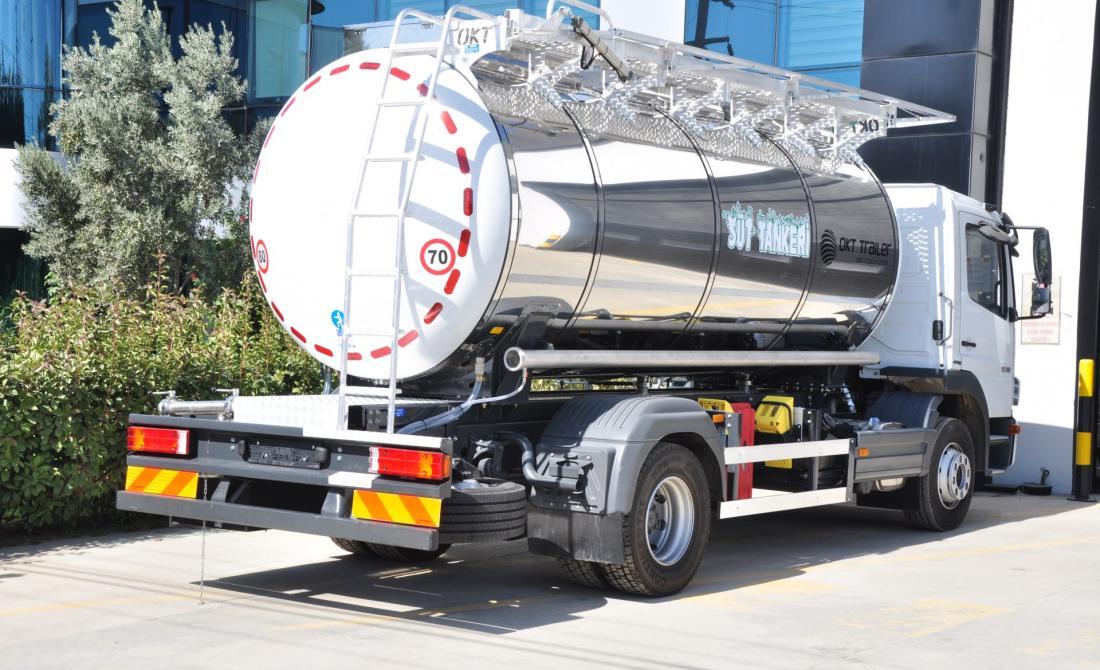

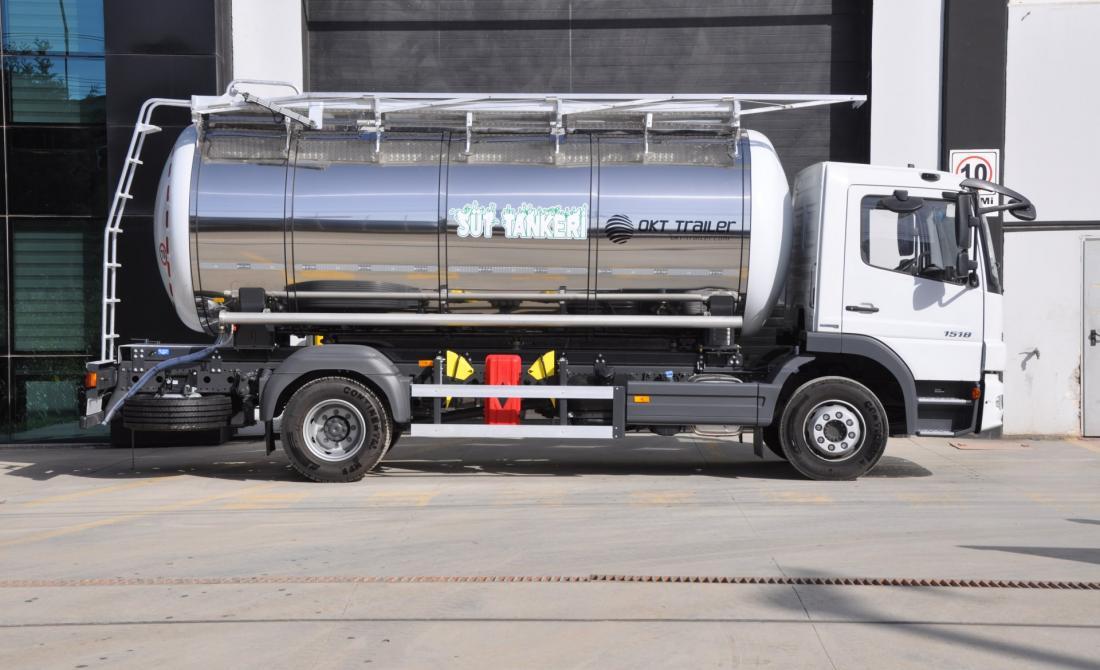

FOODSTUFF TANKER TRUCK MOUNTED

Natural Equilibrium

For our customers, ergonomics of the user is brought to the forefront and aesthetic appearance is gained, protects sensory properties and temperature of transportation by insulating application from the filling up to the discharge, the surface of which is contacted with a special surface treatment suitable for its content, in the suitable thicknesses for the design calculations, cylindrical section allows to carry up to one or three chambers in a wide volume range, powered and makes discharge to the flow, manufactured from the stainless steel body, filling and discharging and cleaning equipment, the Over Truck Food Tanker designed to comply with the "Perishable Food Regulations" (ATP) and other legislation; provides “Natural Equilibrium” with the truck builders' superstructure instructions and truck chassis in different configurations.

10.000 ~ 22.000 Lt.

Volume Range

1 ~3

Number of Compartments

-20 ~ +150 °C

Design Temperature

0,5 - 1 Bar

Design Pressure

Excellence in Food

It adds value to the health with its excellent production concept which protects the value of the product in food transportation and brings sensitivity to the foreground.

Modular Volume

Offers modular solutions for the truck chassis in different configurations with its wide volume alternative designs.

Unique Design

Unique body design and idiosyncratic stand and visual aesthetics make a difference in style according to their peers.

Functionality in the foreground

Designed specifically for the needs and expectations of users, with the option of heating and discharging system, where the transport temperature is protected, functionality is the foreground.

Performance Needs Source

Durable body structure, superior production technology and premium equipment, turn into the long lifetime to income.

OUTSTANDING FEATURES

Automatic opening guardrail
It provides ease of use, safety and automatically locks the brake system

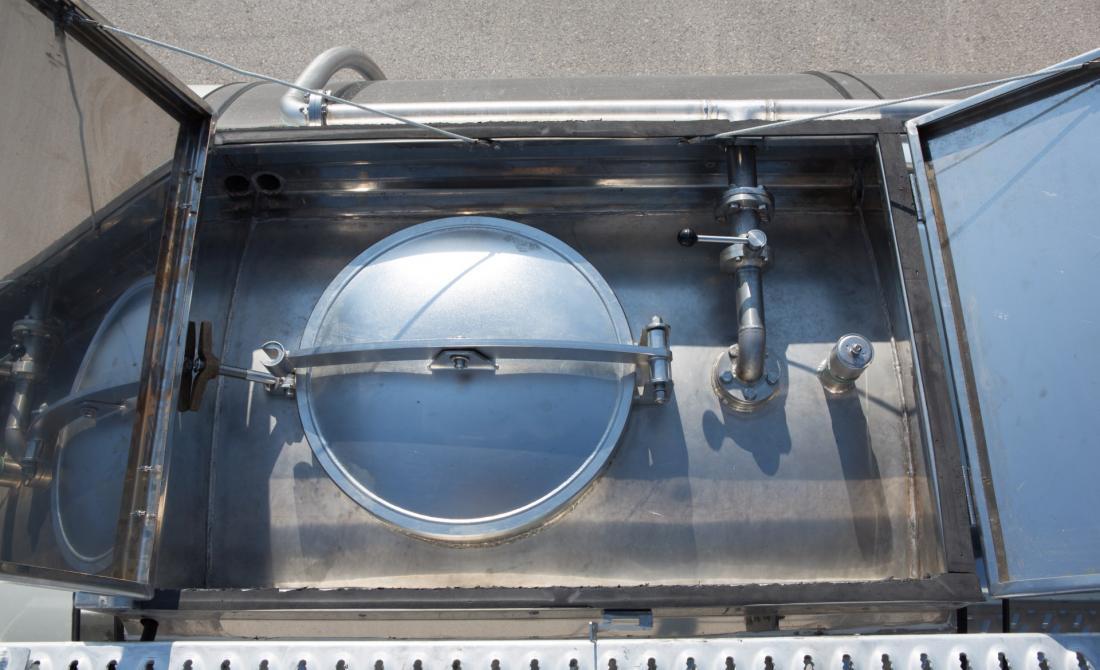

Protective cover
The equipment on the manhole cover is protected against seasonal weather conditions (rain, snow, sun, dust)

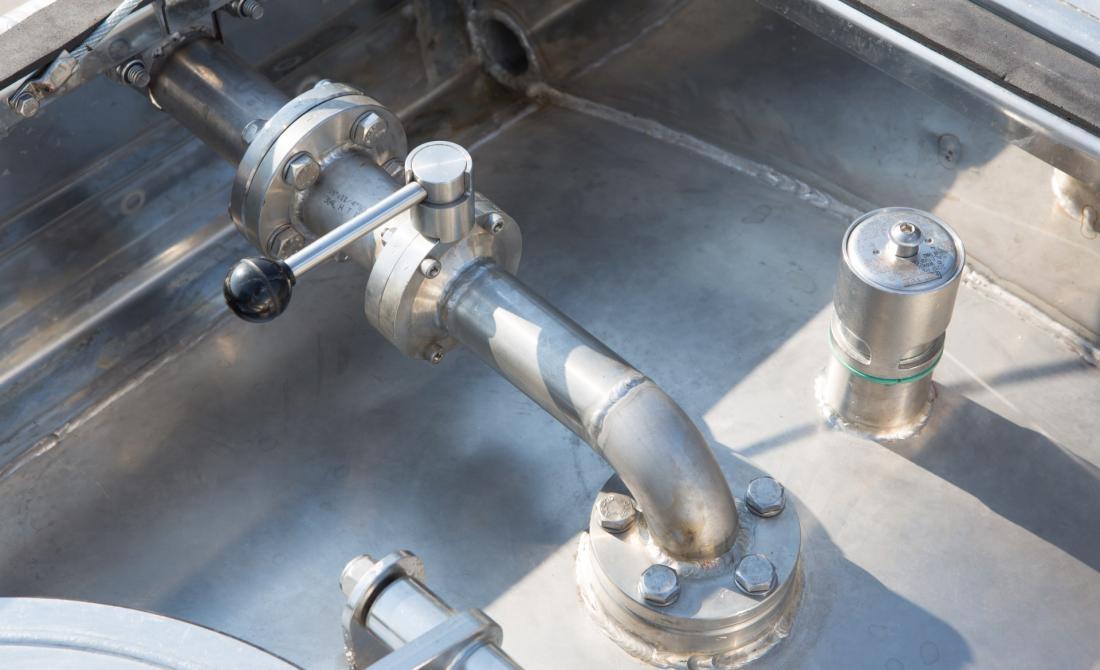

Spilltrays type top pool
Protect armatures against possible rollover and impact

Jointless and one-piece plates in the body structure
The least number of (T) joints provide high strength and long life

Bottom discharges opened by deep drawing method
Provides full discharge of the product at the bottom of the tank

The longest welding seam technology in weld joints
Safe, smooth surface and unique body structure

Seamless high performance robotic welding technology
Minimizes welding faults on the body due to tension and human factors are secures against impact

OMEGA mounting slots and bolted connection system on the chassis
Perfect fit between body and chassis under all kinds of road conditions, increase strength, reduce tension by distributing coming force to the body

Use of robotic welding technology in OMEGA® monoblock connection saddles
Increases body strength at chassis joints, reduces tension effect, provides unity of body

TECHNICAL SPECIFICATIONS

Dimensions
Width	:	max. 2.550 mm.
Height	:	max. 3.500 mm. *
Dead Weight	:	2.000 ~ 3.850 kg *

Capacity
Geometrical Volume	:	10.000 ~ 22.000 l *
Number Of Compartment	:	1 ~ 3 *

Tank
Construction Material Serial	:	Stainless Steel *
Transported Materials	:	Milk, Drinking Water and similar liquid foods and oils *
Operating Temperature	:	-20 ˚C +150 ˚C

* The product type and optional equipment can vary depending on your choice.

Tank Body

Cylindrical cross section design conforms to EN 14025 standard ,
Dished heads at the front and rear, in accordance with EN 13094 design standard internal baffles fit the selected number of compartments,
ISO 3834 Welded manufacturing quality qualification approved,
Unique body structure in the tanker manufacturing sector with a smooth surface, with a minimum number of (T) joints, produced by the longest welding seam technology in the cylindrical structure, seamless, integral plates and their welded joints,
Using seamless high-performance robotic welding technology, welding faults on the body due to tension and human factors are minimized and secured against impact,
Tanks and connections are tested with the method of analysis of the end elements under maximum allowable load to increase the strength of the body and reduce the tension effect at the frame junctions. The robotic welding technology is applied to the OMEGA monoblock connection saddles,
The slope in the chassis design allows complete discharge of each compartment of the tank, with no liquid remaining,
The cleaning manhole for cleaning inside tank and its each compartment when necessary

Insulation::

The tank body is covered with rock wool which protects the product temperature and fluidity for a long time and provides full heat insulation,
Insulation applied to the body is wrapped around the circumference to prevent sagging, protects against external factors, sealing with lath and heat resistant rubber, visual aesthetically insulated isolation coating and front and rear isolation dished heads,

Loading/Discharge Line:

Loading Line:

Depending on the driving direction, it is filled through the right-handed couplings from the bottom or through the manhole covers or closed-circuit filling couplings from the top,

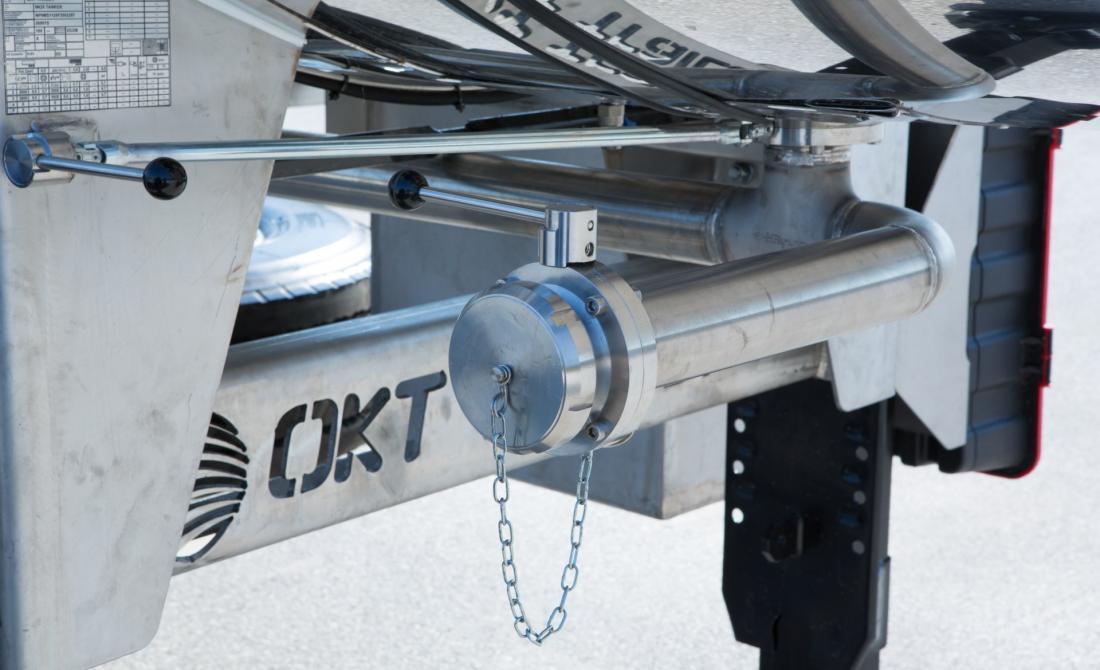

Discharge Line:

Meets EN 13094, on the right side according to the driving direction, gravity discharge through the discharge piping line extending from the bottom valves up to the couplings, at such a slope in order not to remain any liquid in the line after discharge,
ISO 3834 Welded production quality qualification approved discharge pipes welded to the patent padded.

Equipment:

Suitable for liquid foodstuff content from stainless materials in accordance with standards,

Subframe:

Suitable for body design, rollover safety special design subframe made of steel material that can be adapted to bolt connection according to the manufacturer's superstructure installation instructions for all types of truck chassis,
OMEGA® monoblock connection saddles provide a rigid structure with excellent fit to the chassis mounting slots and increase strength,
The spring connections used in the front subframe connections of the tank reduce the tension by distributing the force coming to the body from the road conditions,
Chassis construction parts are manufactured in perfect harmony with synergic welding machines by certified welders under the approval of ISO 3834 Welded manufacturing quality qualification,

Chassis Equipment:

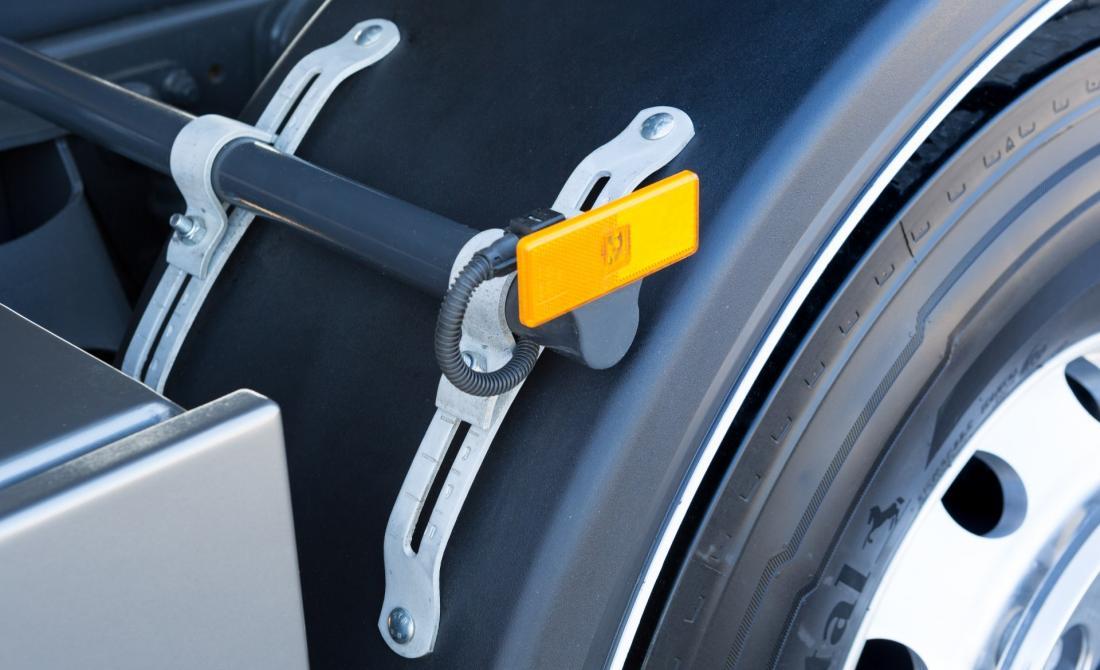

Mudguard :	:	Semi-circle rigid plastic fender mounted on each wheel with aluminium clamp
Mudflaps.	:	Conform 109/2011/EU directive type approved anti-spray mudflaps
Lateral Protection:	:	Conforms ECE R73 regulation protection equipment (lateral protection etc.)

Paint

After the in-tank pickling application, bacterial formation and chemical corrosion are prevented by passivation process,
At least 2 coats of epoxy primer
"OVEN-DRYING" application on topcoat with 2 coats of acrylic paint,

OKT TRAILER reserves the right to make changes in the products. Technical information is approximate and is intended for standard product application. The measurements may vary depending on the truck brand and model. The above information is not quoted. If you contact us, you can get more detailed information about the product.
